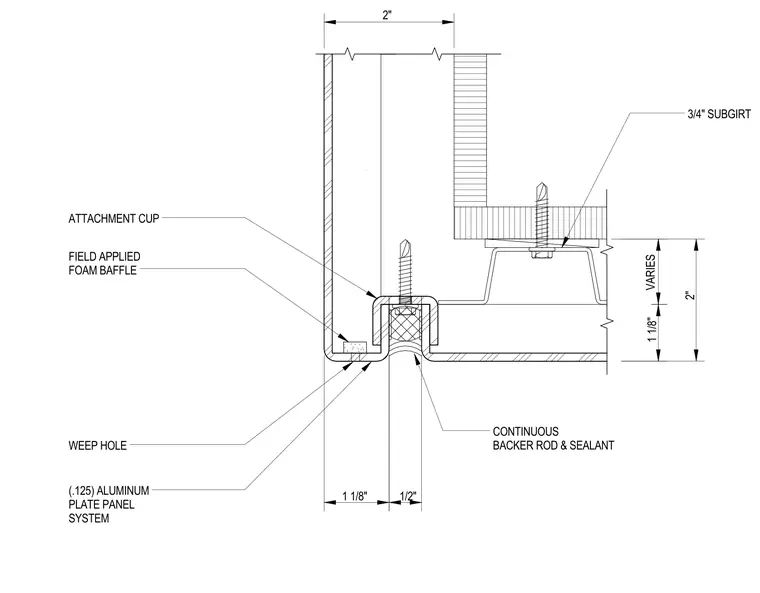

This wall section details the connection and joint configuration at an aluminum plate panel soffit edge. A zero-point-one-two-five-inch aluminum plate panel system ties into a three-quarter-inch subgirt via an attachment cup fastened with self-tapping screws. A continuous backer rod and sealant seal the joint, while a field-applied foam baffle and weep hole provide moisture management. Dimensional callouts indicate a two-inch joint width and variable subgirt spacing.
3/4" SUBGIRT CONTINUOUS BACKER ROD & SEALANT 2" ATTACHMENT CUP FIELD APPLIED FOAM BAFFLE WEEP HOLE (.125) ALUMINUM PLATE PANEL SYSTEM 1 1/8" 1/2" 0' - 5 9/16" 0' - 2 13/16" 0' - 1 3/8" 0' - 5 1/4" 0' - 2 7/16" 0' - 2 13/16" 2" 1 1/8" VARIES
