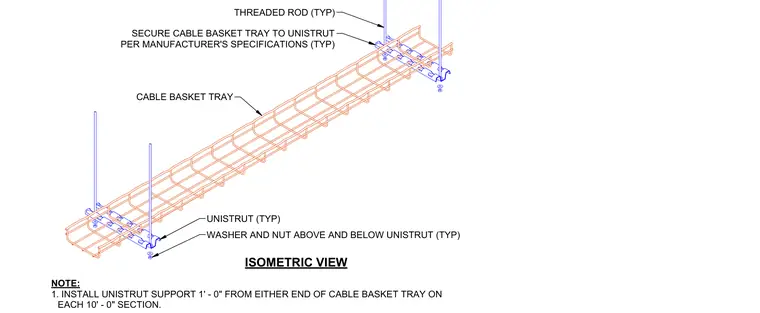

A cable basket tray is supported by Unistrut channels mounted underneath at ten-foot intervals. The Unistrut supports are installed one foot from either end of each ten-foot section of the tray. Threaded rods suspend the assembly from above, anchored with washers and nuts positioned both above and below the Unistrut channel. The cable basket tray is secured to the Unistrut per the manufacturer's specifications.
THREADED ROD (TYP) CABLE BASKET TRAY 1. NOTE: INSTALL UNISTRUT SUPPORT 1' - 0" FROM EITHER END OF CABLE BASKET TRAY ON EACH 10' - 0" SECTION. ISOMETRIC VIEW UNISTRUT (TYP) WASHER AND NUT ABOVE AND BELOW UNISTRUT (TYP) SECURE CABLE BASKET TRAY TO UNISTRUT PER MANUFACTURER'S SPECIFICATIONS (TYP)
