Typical Lighting Control

About this detail

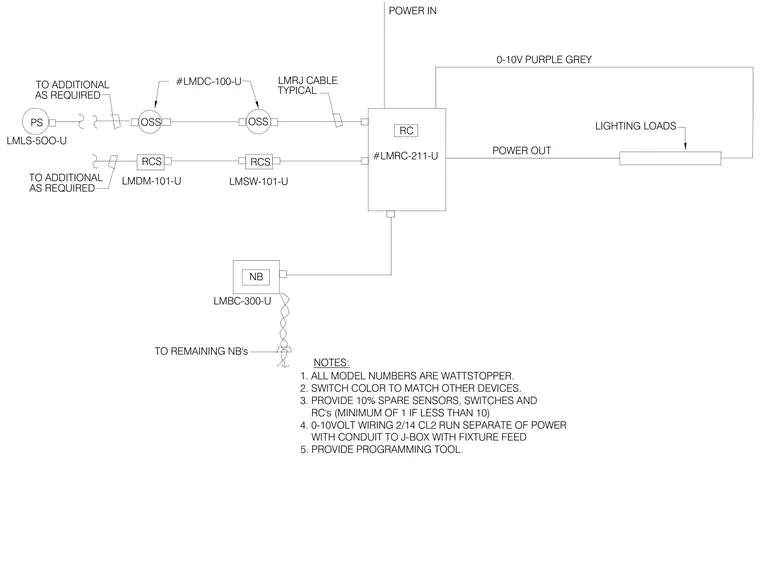

A typical lighting control layout connects to a room controller. Power enters the main LMRC-211-U controller, which distributes power out to lighting loads with a separate 0-10V purple and grey dimming control run. Low-voltage LMRJ cables link the controller to OSS occupancy sensors, LMDM-101-U dimming modules, LMSW-101-U switches, and LMLS-500-U photosensors. An LMBC-300-U network bridge connects via a network bus to remaining network bridges as required. All model numbers correspond to Wattstopper equipment, and 0-10V wiring requires 2/14 CL2 cables run separately in conduit to the junction box with fixture feeds.
