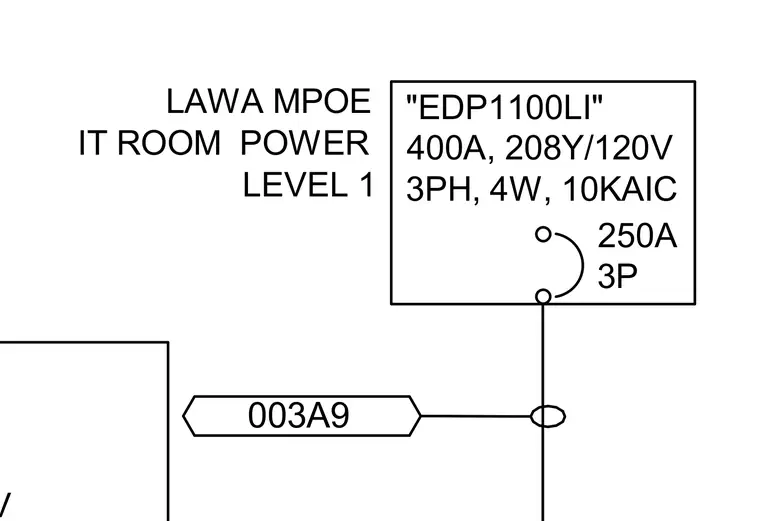

The electrical single line diagram details the power distribution for the LAWA MPOE IT room on Level 1. Panel EDP1100LI is rated at 400A, 208Y/120V, 3-phase, 4-wire with a 10KAIC interrupting capacity. A 250A, 3-pole breaker feeds circuit 003A9.
LAWA MPOE IT ROOM POWER LEVEL 1 "EDP1100LI" 400A, 208Y/120V 3PH, 4W, 10KAIC 250A 3P 003A9
