An industrial strip fixture is suspended from a bare metal deck using a manufacturer-approved chain hanger and V-hook type attachment. A one-quarter-inch diameter eye lag screw anchors the chain support to the deck above, with the chain length adjusted to achieve a minimum mounting height of seven feet six inches above the finished floor to comply with Americans with Disabilities Act guidelines. Fixture sway bracing is attached to the light fixture and the overhead structure to limit lateral swing within a forty-five degree range of motion in all directions. Structural and architectural drawings must be referenced for specific overhead attachment methods.

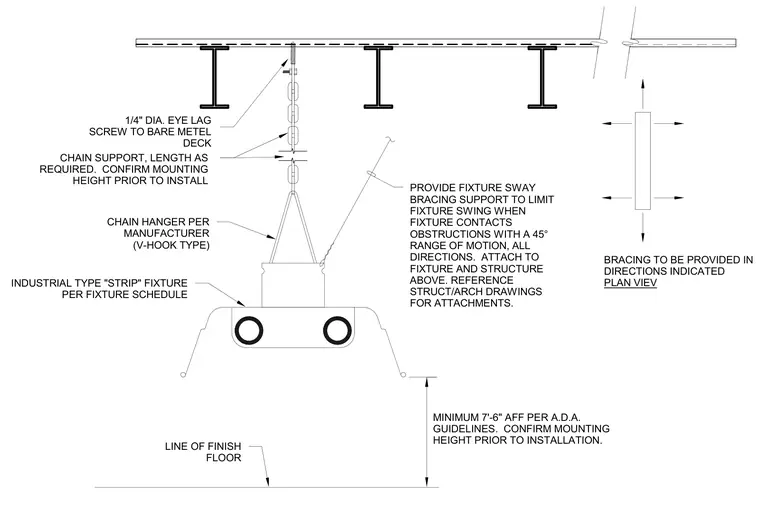

CHAIN HANGER PER MANUFACTURER (V-HOOK TYPE) 1/4" DIA. EYE LAG SCREW TO BARE METEL DECK CHAIN SUPPORT, LENGTH AS REQUIRED. CONFIRM MOUNTING HEIGHT PRIOR TO INSTALL MINIMUM 7'-6" AFF PER A.D.A. GUIDELINES. CONFIRM MOUNTING HEIGHT PRIOR TO INSTALLATION. INDUSTRIAL TYPE "STRIP" FIXTURE PER FIXTURE SCHEDULE PROVIDE FIXTURE SWAY BRACING SUPPORT TO LIMIT FIXTURE SWING WHEN FIXTURE CONTACTS OBSTRUCTIONS WITH A 45° RANGE OF MOTION, ALL DIRECTIONS. ATTACH TO FIXTURE AND STRUCTURE ABOVE. REFERENCE STRUCT/ARCH DRAWINGS FOR ATTACHMENTS. LINE OF FINISH FLOOR PLAN VIEV BRACING TO BE PROVIDED IN DIRECTIONS INDICATED
