A ground conductor connects piping to building steel using O-Z/Gedney pipe ground clamps selected according to the pipe size. Catalog numbers G-50-G, G-51-G, and G-52-G serve pipe sizes from one-half inch to one inch. Catalog number G-200-G serves pipe sizes from one-and-one-quarter inch to two inches.

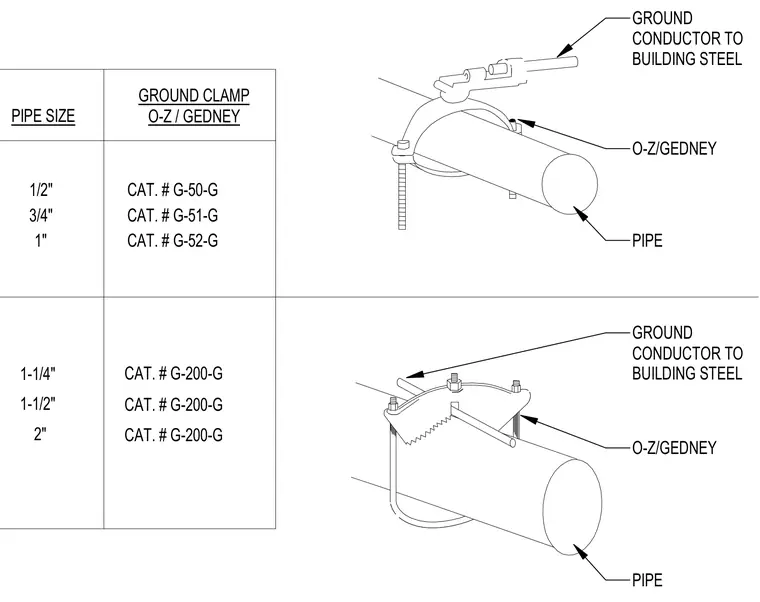

PIPE O-Z/GEDNEY GROUND CONDUCTOR TO BUILDING STEEL CAT. # G-200-G CAT. # G-200-G CAT. # G-200-G 2" 1-1/2" 1-1/4" CAT. # G-52-G CAT. # G-51-G CAT. # G-50-G 1" 3/4" 1/2" GROUND CLAMP O-Z / GEDNEY PIPE SIZE PIPE O-Z/GEDNEY GROUND CONDUCTOR TO BUILDING STEEL
