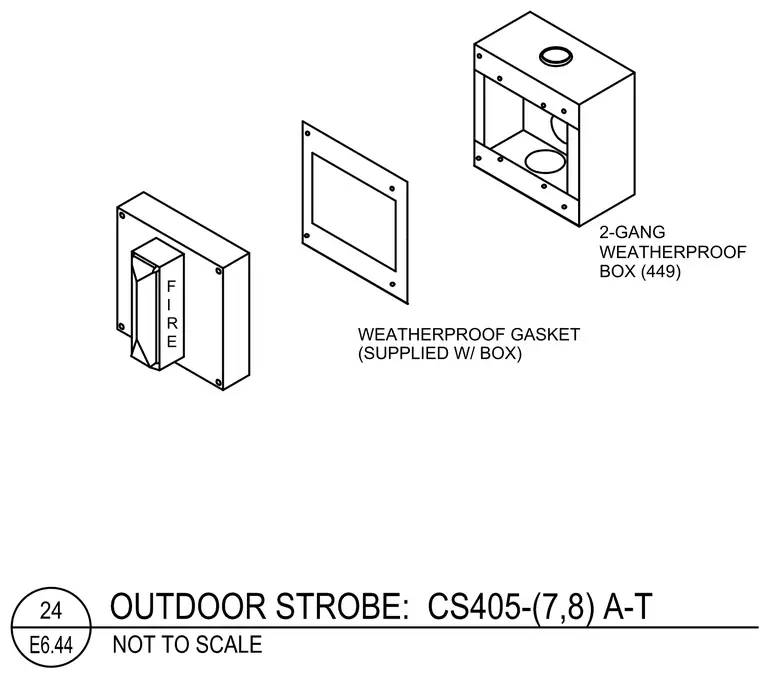

An outdoor fire alarm strobe assembly includes a two-gang weatherproof box with threaded conduit knockouts, a weatherproof gasket supplied with the box, and a fire strobe unit mounted to the faceplate. The gasket seals the junction between the device and the box to prevent moisture intrusion in exterior locations.
