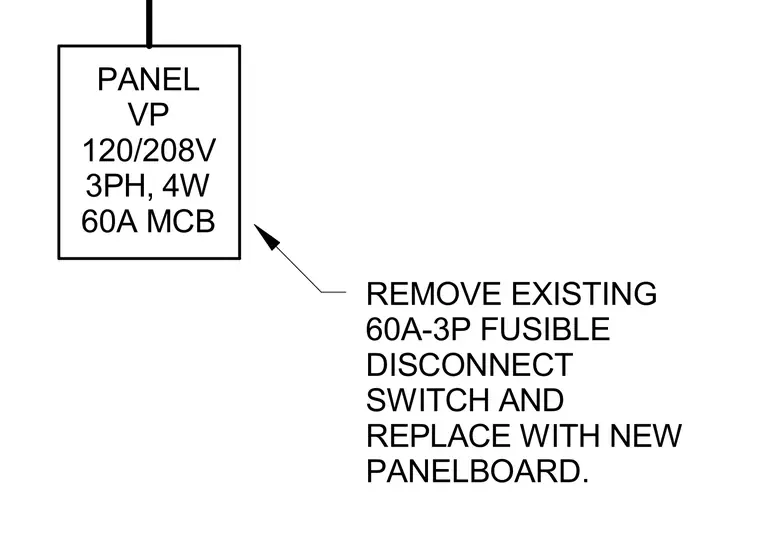

An existing sixty-ampere three-pole fusible disconnect switch is removed and replaced with a new one hundred twenty over two hundred eight volt three-phase four-wire sixty-ampere main circuit breaker panelboard designated as panel VP.
PANEL VP 120/208V 3PH, 4W 60A MCB REMOVE EXISTING 60A-3P FUSIBLE DISCONNECT SWITCH AND REPLACE WITH NEW PANELBOARD.
