Electrical Power Distribution Single Line Diagram Level 2

About this detail

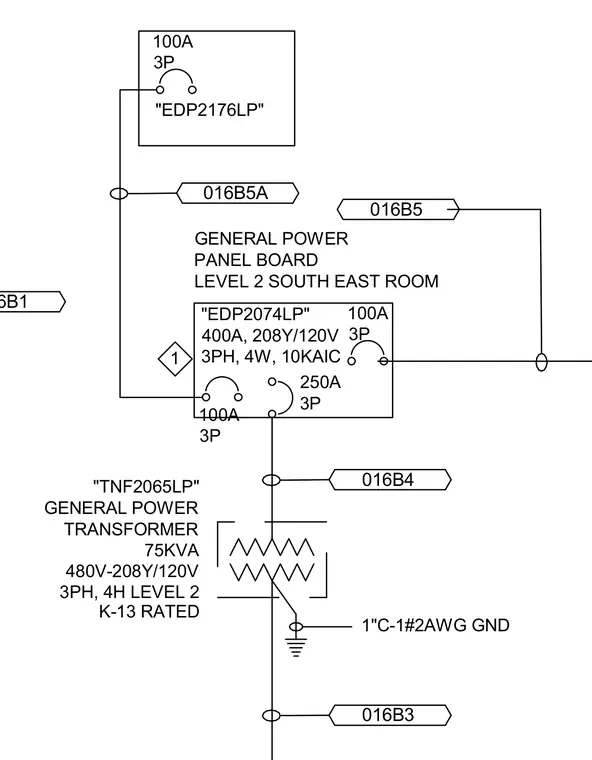

A 75 kVA general power transformer rated 480V to 208Y/120V 3-phase, 4-wire with a K-13 rating supplies a 400A, 208Y/120V 3-phase, 4-wire panel board designated EDP2074LP with a 10kAIC rating. The transformer includes a 1-inch conduit with one number 2 American Wire Gauge ground connection. Feeders connect to panel board EDP2176LP at 100A 3-phase through conduit circuit identifiers 016B5A and 016B5, and additional circuits connect via identifiers 016B3 and 016B4.
