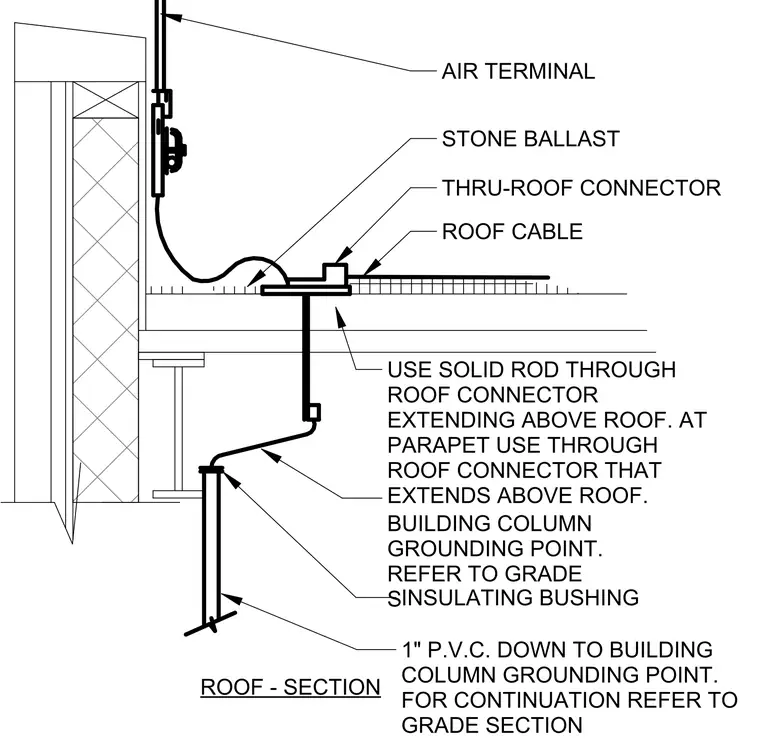

An air terminal extends above the roof near a parapet and stone ballast layer, secured with a through-roof connector. A roof cable links the terminal to a solid rod penetrating the roof construction. Inside, the conductor runs through an insulating bushing into a one-inch polyvinyl chloride conduit routing the down lead to the building column grounding point. Continuation of the grounding path references the grade section.
AIR TERMINAL STONE BALLAST THRU-ROOF CONNECTOR ROOF CABLE DOWN LEAD CABLE TO BUILDING COLUMN GROUNDING POINT. REFER TO GRADE SECTION INSULATING BUSHING 1" P.V.C. DOWN TO BUILDING COLUMN GROUNDING POINT. FOR CONTINUATION REFER TO GRADE SECTION ROOF - SECTION USE SOLID ROD THROUGH ROOF CONNECTOR EXTENDING ABOVE ROOF. AT PARAPET USE THROUGH ROOF CONNECTOR THAT EXTENDS ABOVE ROOF.
