Standard suspension methods for electrical raceways ranging from three-quarters of an inch to six inches in diameter. Beam clamps or hanger clamps are secured to the structural unit according to the supported weight. All-thread rods, sized for the load with a three-eighths inch minimum, suspend conduit hangers to carry the raceway. Wire is strictly prohibited as a component of any raceway hanger system. Additionally, raceways larger than one inch shall not be supported from the bottom cord of steel trusses.

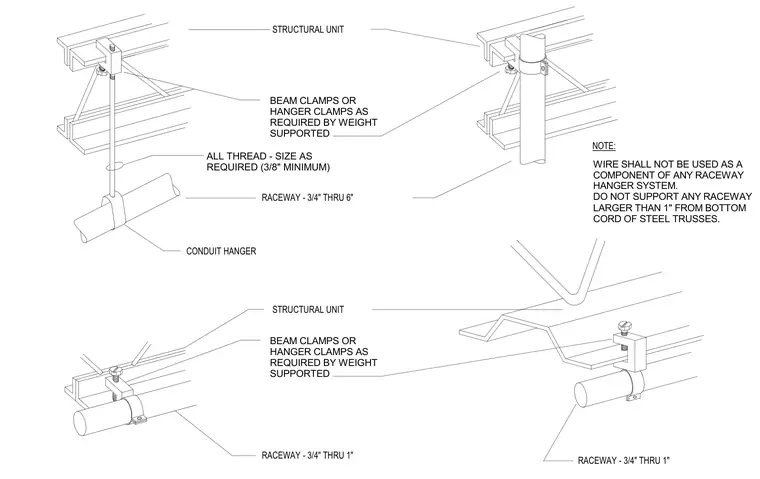

RACEWAY - 3/4" THRU 1" RACEWAY - 3/4" THRU 6" BEAM CLAMPS OR HANGER CLAMPS AS REQUIRED BY WEIGHT SUPPORTED STRUCTURAL UNIT CONDUIT HANGER STRUCTURAL UNIT BEAM CLAMPS OR HANGER CLAMPS AS REQUIRED BY WEIGHT SUPPORTED ALL THREAD - SIZE AS REQUIRED (3/8" MINIMUM) RACEWAY - 3/4" THRU 1" WIRE SHALL NOT BE USED AS A COMPONENT OF ANY RACEWAY HANGER SYSTEM. DO NOT SUPPORT ANY RACEWAY LARGER THAN 1" FROM BOTTOM CORD OF STEEL TRUSSES. NOTE:
