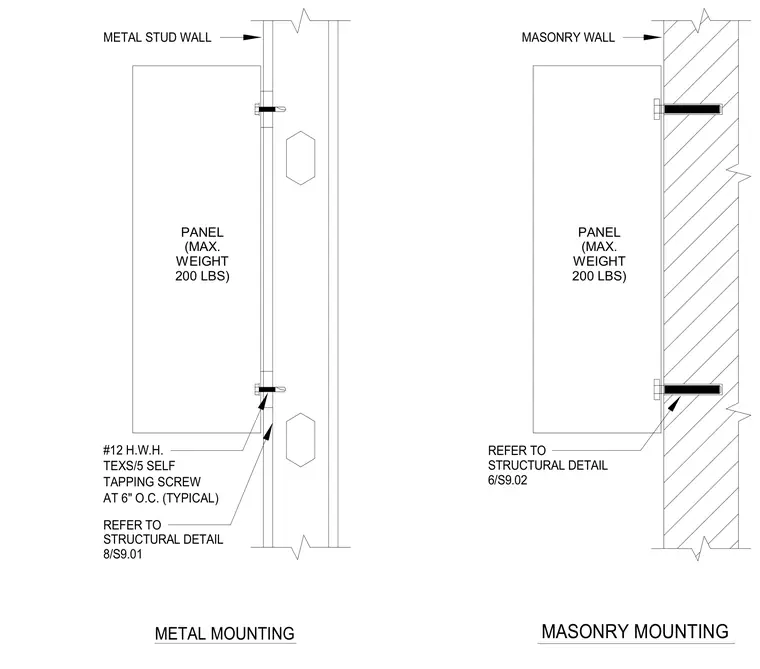

Surface mounted equipment panels with a maximum weight of 200 pounds are attached to metal stud walls using number 12 hex washer head self-tapping screws spaced at 6 inches on center typically. The metal stud framing references structural detail 8 slash S9.01 for structural support requirements. For masonry wall installations, panels are mounted directly to the masonry wall using anchors referencing structural detail 6 slash S9.02.
MASONRY WALL MASONRY MOUNTING PANEL (MAX. WEIGHT 200 LBS) #12 H.W.H. TEXS/5 SELF TAPPING SCREW METAL STUD WALL AT 6" O.C. (TYPICAL) METAL MOUNTING PANEL (MAX. WEIGHT 200 LBS) REFER TO STRUCTURAL DETAIL 6/S9.02 REFER TO STRUCTURAL DETAIL 8/S9.01
