MCC73T3 Demo One-Line Diagram

About this detail

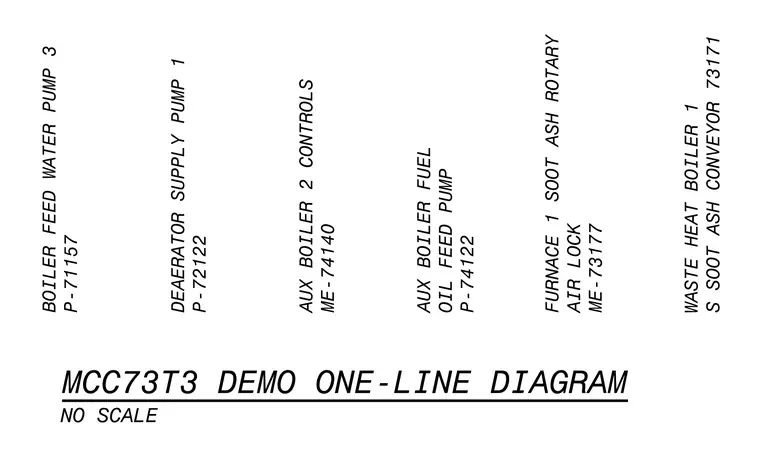

This electrical demolition diagram outlines the one-line connections for motor control center MCC73T3. The diagram details equipment feeds including the waste heat boiler, soot ash conveyor 73171, soot ash rotary air lock ME-73177, auxiliary boiler 2 controls ME-74140, auxiliary boiler fuel oil feed pump P-74122, deaerator supply pump 1 P-72122, and boiler feed water pump 3 P-71157.
