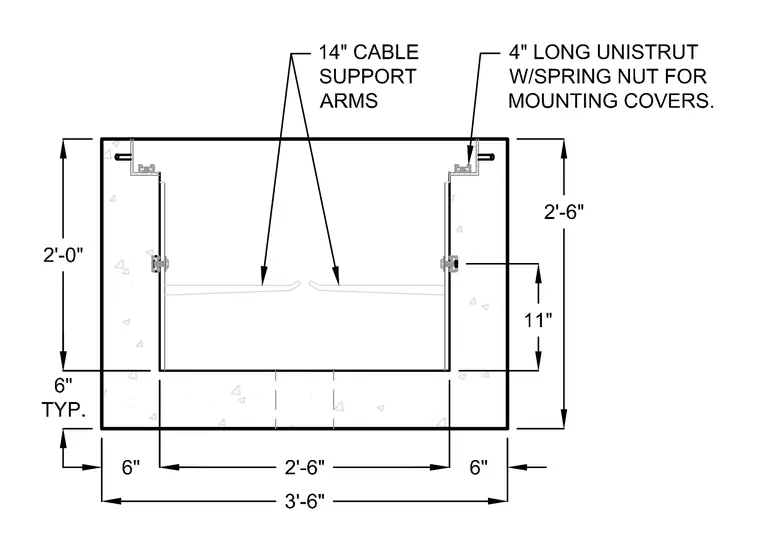

Fourteen-inch cable support arms mount within a concrete utility trench with six-inch thick walls and base dimensions of three feet six inches wide by two feet six inches high. Four-inch long Unistrut channels with spring nuts anchor near the top of the trench walls for mounting covers. Vertical and horizontal dimensions establish precise positioning for the internal support brackets and overall trench profile.
2'-6" 3'-6" 6" 6" TYP. 2'-0" 6" 2'-6" 11" 14" CABLE SUPPORT ARMS 4" LONG UNISTRUT W/SPRING NUT FOR MOUNTING COVERS.
