Typical Wall Mount Data Outlet Connection

Elements

Walls Ceilings Floors / Slabs Connections / Plates

About this detail

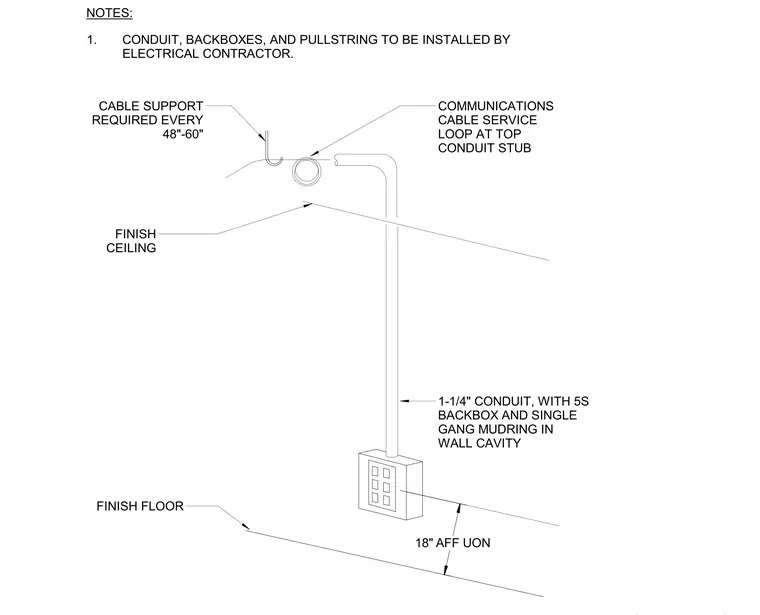

A one-and-one-quarter-inch conduit extends upward within the wall cavity to a 5S backbox equipped with a single-gang mudring, positioned at eighteen inches above the finish floor unless otherwise noted. A communications cable service loop is provided at the top of the conduit stub near the finish ceiling, accompanied by cable supports required every forty-eight to sixty inches. The conduit, backboxes, and pullstring are installed by the electrical contractor.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
