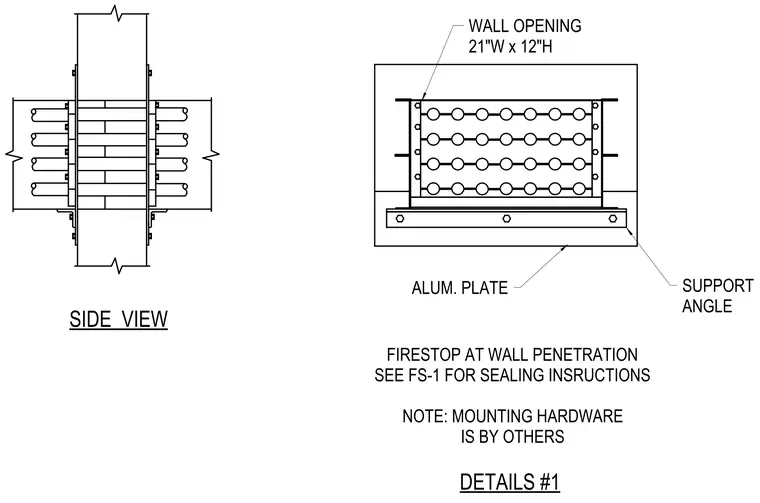

A twenty-one-inch-wide by twelve-inch-high wall opening accommodates cable penetrations supported by an aluminum plate and a structural support angle. Firestop material seals the wall penetration according to sheet FS-1 sealing instructions. Mounting hardware is provided by others.
WALL OPENING 21"W x 12"H SUPPORT ANGLE ALUM. PLATE FIRESTOP AT WALL PENETRATION SEE FS-1 FOR SEALING INSRUCTIONS NOTE: MOUNTING HARDWARE IS BY OTHERS DETAILS #1 SIDE VIEW
