Exhaust Fan Control Schematic

About this detail

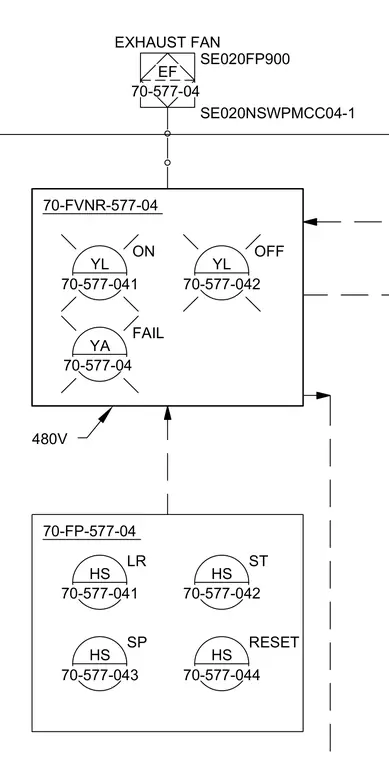

An electrical schematic shows a 480V exhaust fan connected to a starter unit and a local control station with indicator lights and hand-off-auto switches. The exhaust fan, designated EF SE020FP900, is powered through a 480V circuit controlled by a starter panel 70-FVNR-577-04. The control scheme includes yellow ON and OFF indicator lights, a fail alarm light, and hand switches for local, stop, start, and reset functions.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
