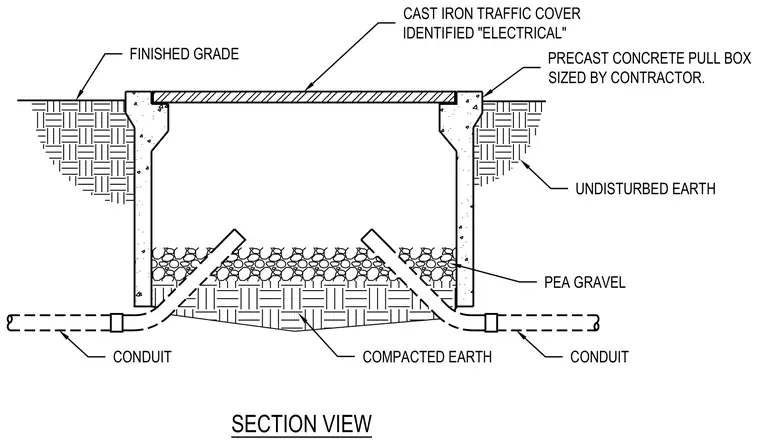

A precast concrete pull box is embedded in undisturbed earth with finished grade meeting the top of the assembly. A cast iron traffic cover identified as electrical sits flush on the box frame. Conduits enter through the base, which is bedded in compacted earth and pea gravel.
SECTION VIEW PRECAST CONCRETE PULL BOX SIZED BY CONTRACTOR. CAST IRON TRAFFIC COVER IDENTIFIED "ELECTRICAL" UNDISTURBED EARTH PEA GRAVEL COMPACTED EARTH CONDUIT FINISHED GRADE CONDUIT
