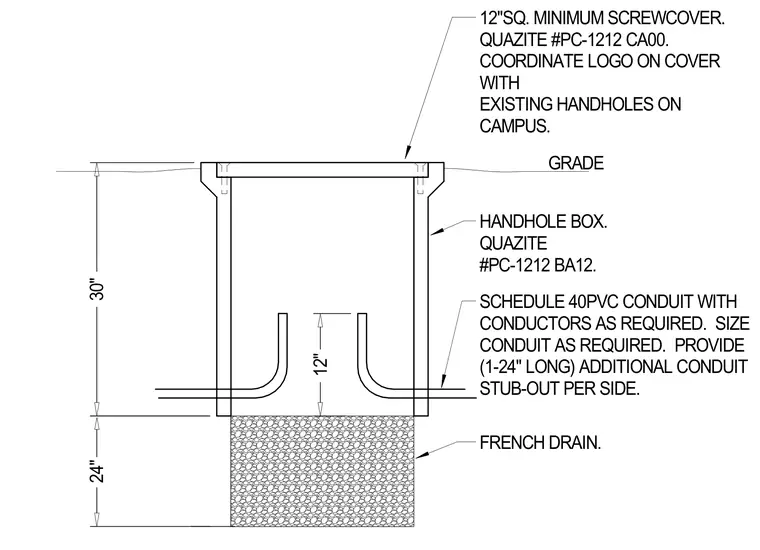

An underground Quazite polymer concrete handhole box is set flush with finish grade on top of a twenty-four-inch deep French drain. A twelve-inch square minimum screwcover with a campus-coordinated logo sits atop the box. Schedule 40 PVC conduits enter the box with conductors as required, including one twenty-four-inch long additional conduit stub-out per side positioned twelve inches above the drain base.
HANDHOLE BOX. QUAZITE #PC-1212 BA12. SCHEDULE 40PVC CONDUIT WITH CONDUCTORS AS REQUIRED. SIZE CONDUIT AS REQUIRED. PROVIDE (1-24" LONG) ADDITIONAL CONDUIT STUB-OUT PER SIDE. FRENCH DRAIN. 12"SQ. MINIMUM SCREWCOVER. QUAZITE #PC-1212 CA00. COORDINATE LOGO ON COVER WITH EXISTING HANDHOLES ON CAMPUS. GRADE 30" 24" 12"
