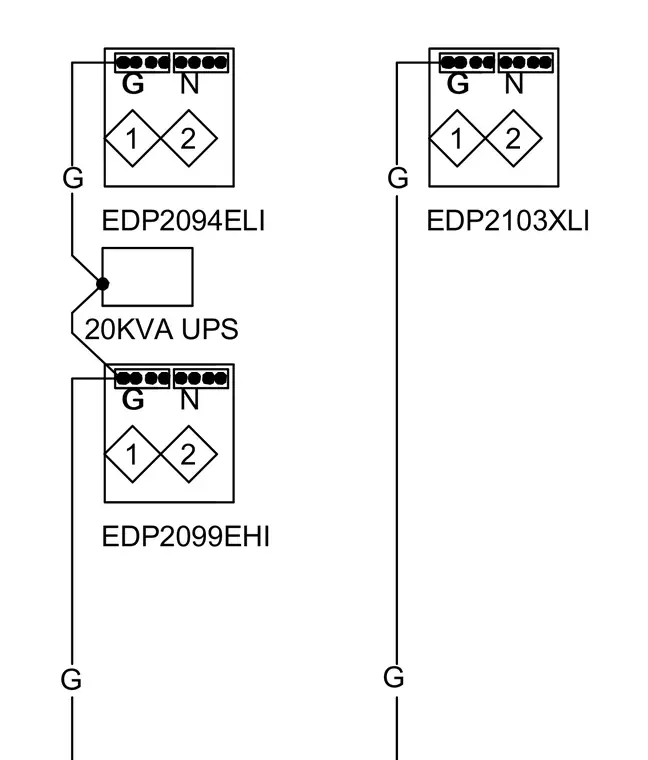

This electrical diagram shows the wiring connections for a twenty kilovolt-ampere uninterruptible power supply. The unit connects to designated distribution panels with ground and neutral conductors routed through the system. Equipment identifiers and terminal blocks are clearly labeled for proper field installation.
