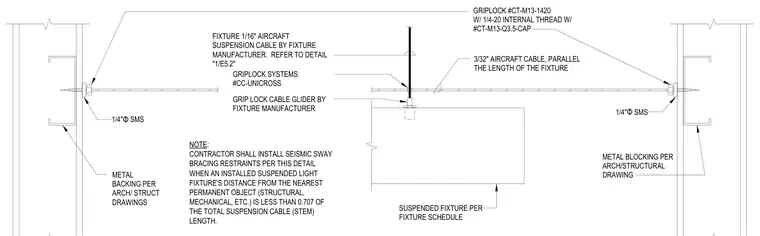

A cable-suspended lighting fixture is laterally restrained against seismic forces using a thirty-two-inch aircraft cable running parallel to the fixture length, secured with Griplock systems model CC-UNICROSS and model CT-M13-1420 with one-quarter-inch internal thread and cap. One-sixteenth-inch aircraft suspension cables support the fixture vertically via cable gliders. The sway cables anchor horizontally on both sides to metal blocking and backing within stud walls using one-quarter-inch diameter sheet metal screws. Contractors must install these restraints whenever a suspended light fixture's distance to the nearest permanent object is less than 0.707 of the total suspension cable length.
3/32" AIRCRAFT CABLE, PARALLEL THE LENGTH OF THE FIXTURE GRIPLOCK SYSTEMS #CC-UNICROSS GRIPLOCK #CT-M13-1420 W/ 1/4-20 INTERNAL THREAD W/ #CT-M13-Q3.5-CAP SUSPENDED FIXTURE PER FIXTURE SCHEDULE FIXTURE 1/16" AIRCRAFT SUSPENSION CABLE BY FIXTURE MANUFACTURER. REFER TO DETAIL "1/E5.2" GRIP LOCK CABLE GLIDER BY FIXTURE MANUFACTURER NOTE: CONTRACTOR SHALL INSTALL SEISMIC SWAY BRACING RESTRAINTS PER THIS DETAIL WHEN AN INSTALLED SUSPENDED LIGHT FIXTURE'S DISTANCE FROM THE NEAREST PERMANENT OBJECT (STRUCTURAL, MECHANICAL, ETC.) IS LESS THAN 0.707 OF THE TOTAL SUSPENSION CABLE (STEM) LENGTH. 1/4" Φ SMS METAL BLOCKING PER ARCH/STRUCTURAL DRAWING 1/4" Φ SMS METAL BACKING PER ARCH/ STRUCT DRAWINGS
