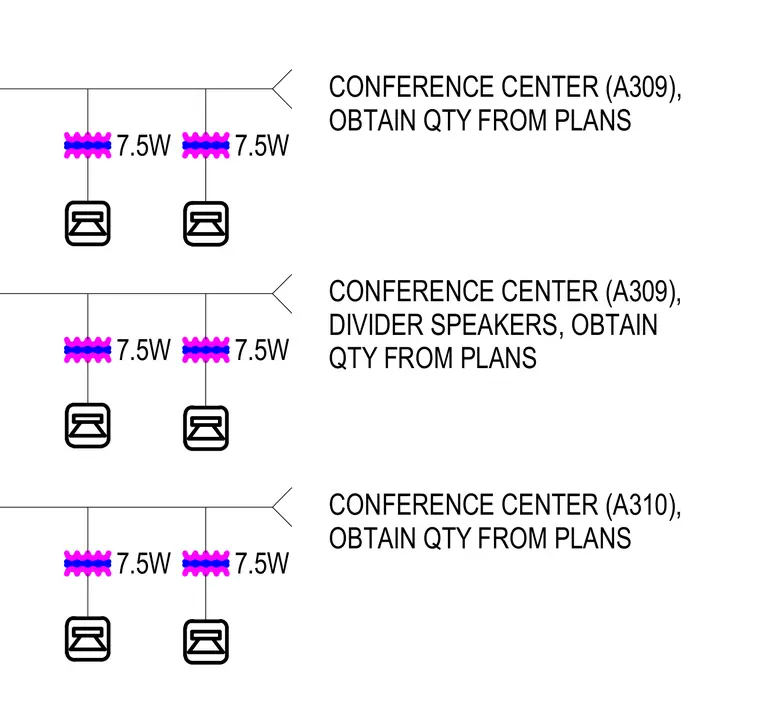

Audio distribution diagram detailing conference center divider speakers with 7.5W taps for rooms A309 and A310. Quantities are to be obtained directly from architectural plans.
7.5W 7.5W 7.5W 7.5W 7.5W 7.5W CONFERENCE CENTER (A309), OBTAIN QTY FROM PLANS CONFERENCE CENTER (A309), DIVIDER SPEAKERS, OBTAIN QTY FROM PLANS CONFERENCE CENTER (A310), OBTAIN QTY FROM PLANS
