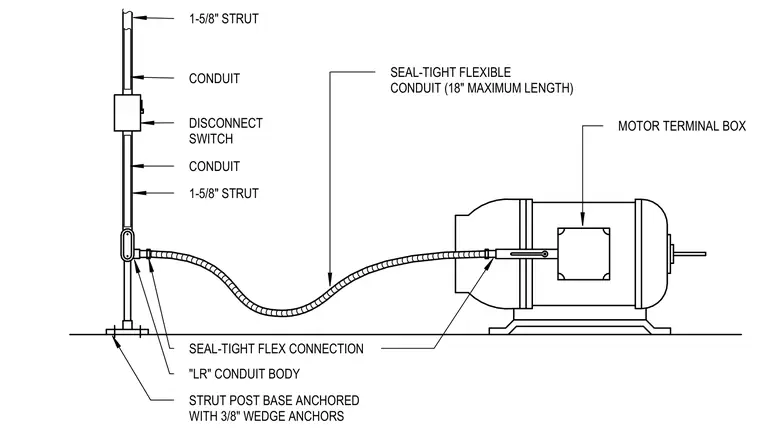

An overhead conduit run drops down a 1-5/8 inch strut support mounted to the floor with a strut post base anchored by three-eighths-inch wedge anchors. A disconnect switch interrupts the conduit run before it extends down to an LR conduit body. From the conduit body, a seal-tight flexible conduit spans a maximum length of 18 inches to connect directly to the motor terminal box.
SEAL-TIGHT FLEX CONNECTION 1-5/8" STRUT CONDUIT DISCONNECT SWITCH 1-5/8" STRUT STRUT POST BASE ANCHORED WITH 3/8" WEDGE ANCHORS "LR" CONDUIT BODY MOTOR TERMINAL BOX SEAL-TIGHT FLEXIBLE CONDUIT (18" MAXIMUM LENGTH) CONDUIT
