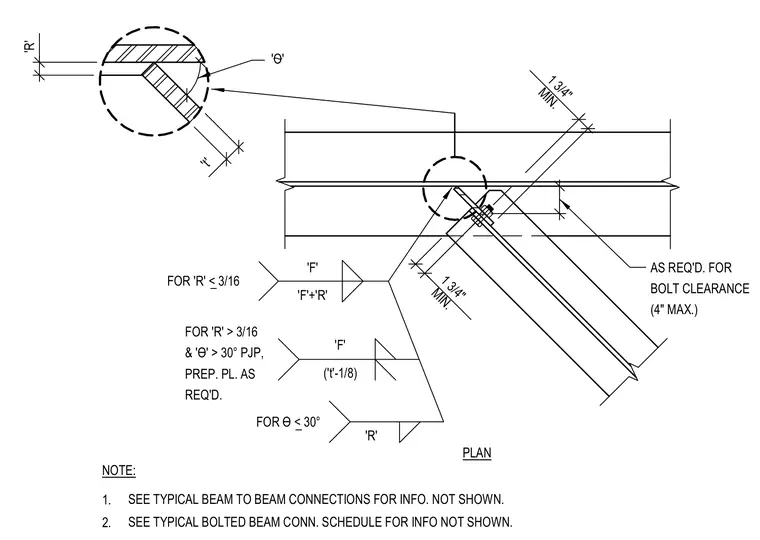

A beam-to-beam connection for a skewed member where member A is less than or equal to member B. Weld preparation and sizing requirements vary depending on the root opening and skew angle. For root openings up to three-sixteenths of an inch, specific fillet and root weld configurations apply. When root openings exceed three-sixteenths of an inch and the angle is greater than thirty degrees, partial-joint-penetration welds with plate preparation are specified. Bolt clearance adjustments up to a four-inch maximum are detailed for intersecting members.
1 3/4" MIN. 1 3/4" MIN. 't' 'R' FOR 'R' < 3/16 FOR 'R' > 3/16 & 'Ө' > 30° PJP, PREP. PL. AS REQ'D. FOR Ө < 30° 'F'+'R' 'R' ('t'-1/8) 'F' 'F' _ _ 'O' AS REQ'D. FOR BOLT CLEARANCE (4" MAX.) 1. SEE TYPICAL BEAM TO BEAM CONNECTIONS FOR INFO. NOT SHOWN. PLAN NOTE: 2. SEE TYPICAL BOLTED BEAM CONN. SCHEDULE FOR INFO NOT SHOWN.
