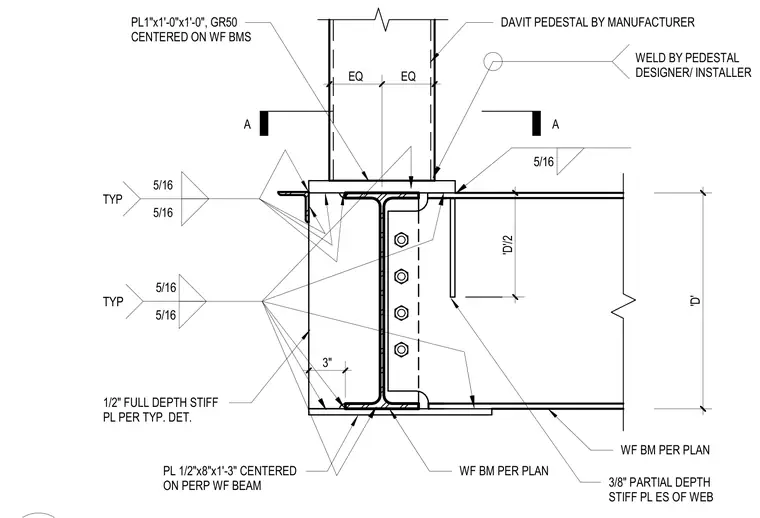

A davit pedestal is mounted on a base plate measuring 1 inch by 1 foot by 1 foot in Grade 50 steel, centered on wide flange beams sized per plan. The assembly incorporates a 1/2-inch by 8-inch by 1-3/3-inch plate centered on the perpendicular wide flange beam, secured with 5/16-inch fillet welds typically. A 1/2-inch full-depth stiffener plate per typical detail and 3/8-inch partial-depth stiffener plates on each side of the web provide reinforcement. The davit pedestal itself is supplied by the manufacturer and welded by the pedestal designer or installer with a 3-inch weld.
A 5/16 5/16 TYP 5/16 WF BM PER PLAN WF BM PER PLAN 3/8" PARTIAL DEPTH STIFF PL ES OF WEB 5/16 5/16 TYP A PL1"x1'-0"x1'-0", GR50 CENTERED ON WF BMS DAVIT PEDESTAL BY MANUFACTURER 'D' 'D'/2 1/2" FULL DEPTH STIFF PL PER TYP. DET. PL 1/2"x8"x1'-3" CENTERED ON PERP WF BEAM 3" WELD BY PEDESTAL DESIGNER/ INSTALLER EQ EQ
