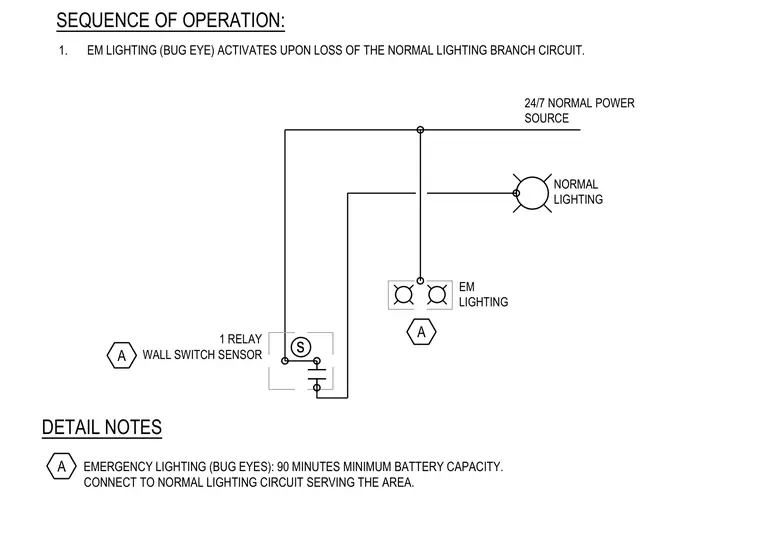

The emergency lighting system connects to a twenty-four-seven normal power source and the normal lighting circuit serving the area through a single relay wall switch sensor. The emergency bug-eye lighting fixtures activate automatically upon the loss of the normal lighting branch circuit. Battery capacity must be maintained for a minimum of ninety minutes.
NORMAL LIGHTING 24/7 NORMAL POWER SOURCE DETAIL NOTES EMERGENCY LIGHTING (BUG EYES): 90 MINUTES MINIMUM BATTERY CAPACITY. CONNECT TO NORMAL LIGHTING CIRCUIT SERVING THE AREA. EM LIGHTING 1 RELAY WALL SWITCH SENSOR s 1. EM LIGHTING (BUG EYE) ACTIVATES UPON LOSS OF THE NORMAL LIGHTING BRANCH CIRCUIT. SEQUENCE OF OPERATION: A A A
