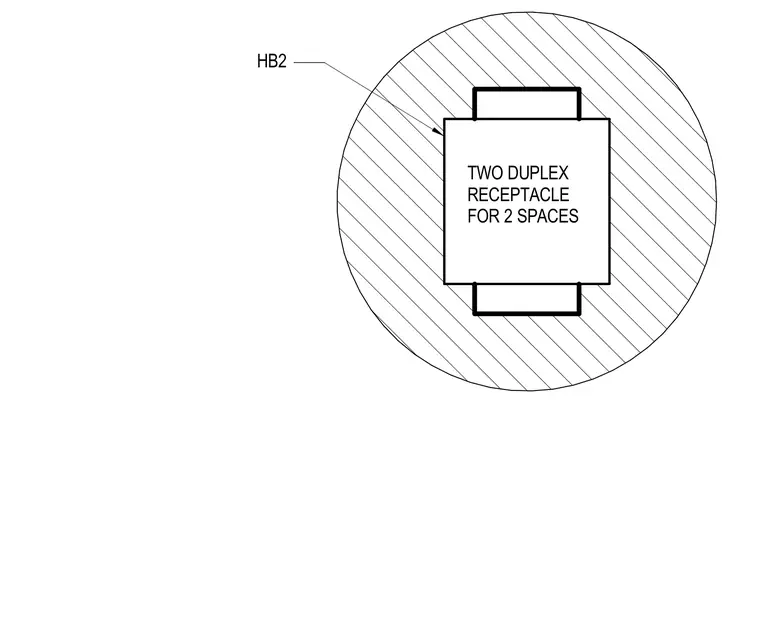

Two duplex receptacles are arranged within a headbolt configuration designated as HB2. The layout provides two separate spaces for electrical connections within the designated assembly.
