Electrical · E-X4QFS

Typical Stubbed Conduit Riser Into Equipment

Materials

Elements

About this detail

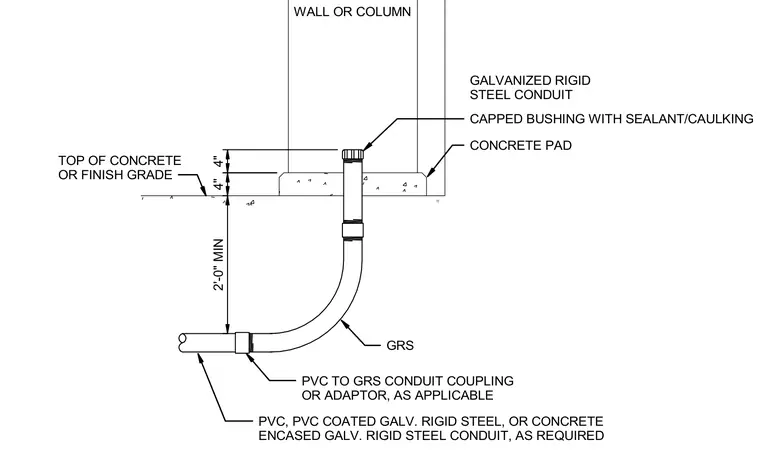

A galvanized rigid steel conduit rises vertically through a concrete pad, terminating four inches above the top of concrete or finish grade with a capped bushing sealed with caulking. Below grade, a PVC, PVC coated galvanized rigid steel, or concrete encased galvanized rigid steel conduit connects via a PVC to galvanized rigid steel coupling or adaptor. The sweep maintains a minimum two-foot depth below grade before transitioning to the vertical riser. The conduit exits adjacent to a wall or column and extends up into the equipment space.
