Electrical · E-WZMEJ

Cable Tray Bonding Detail

Materials

Metal (misc.)

Elements

Roof / Floor Openings

Connections

Bolted Connection Rebar Splice / Development

About this detail

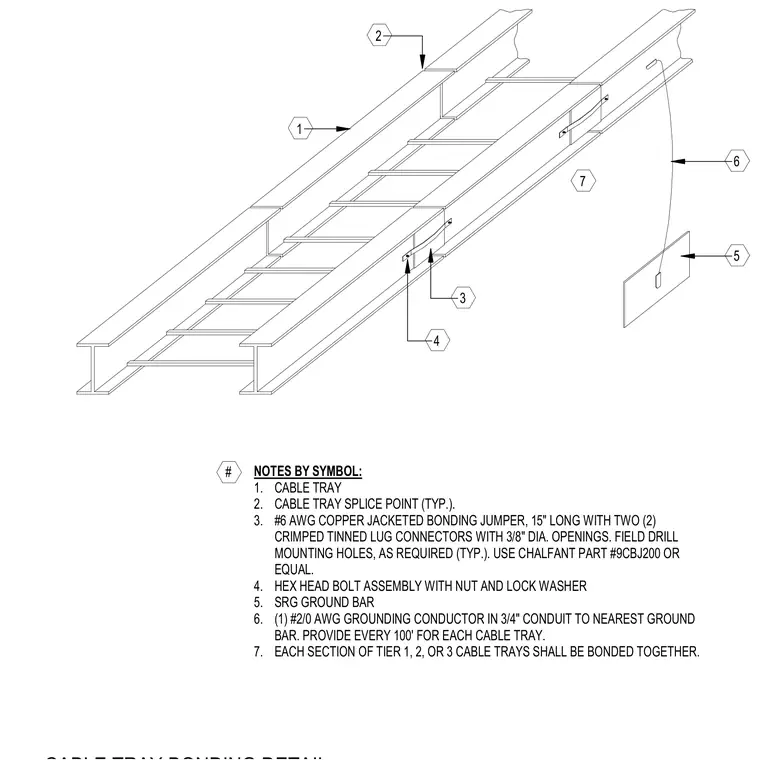

Each section of tier one, two, or three cable trays is bonded together at the splice point using a number six American Wire Gauge copper jacketed bonding jumper. The fifteen-inch long jumper features two crimped tinned lug connectors with three-eighths inch diameter openings, secured with hex head bolt assemblies including nuts and lock washers into field-drilled mounting holes. A number two-slash-zero American Wire Gauge grounding conductor routed in a three-quarter inch conduit connects the tray to the nearest ground bar every one hundred feet.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
