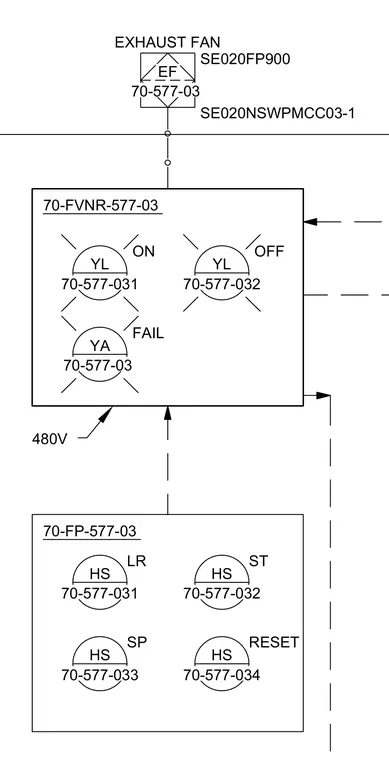

Electrical diagram for a 480-volt exhaust fan designated EF with identification numbers SE020FP900 and SE020NSWPMCC03-1. The system includes a motor starter unit with ON and OFF yellow pilot lights and a fail alarm indicator. A separate control station contains four hand switches for local-remote, start, stop, and reset functions.
HS 70-577-031 LR HS 70-577-032 ST HS 70-577-033 SP HS 70-577-034 RESET )915 480V )3 EF EXHAUST FAN SE020NSWPMCC03-1 SE020FP900 YL 70-577-032 OFF YA FAIL YL 70-577-031 ON
