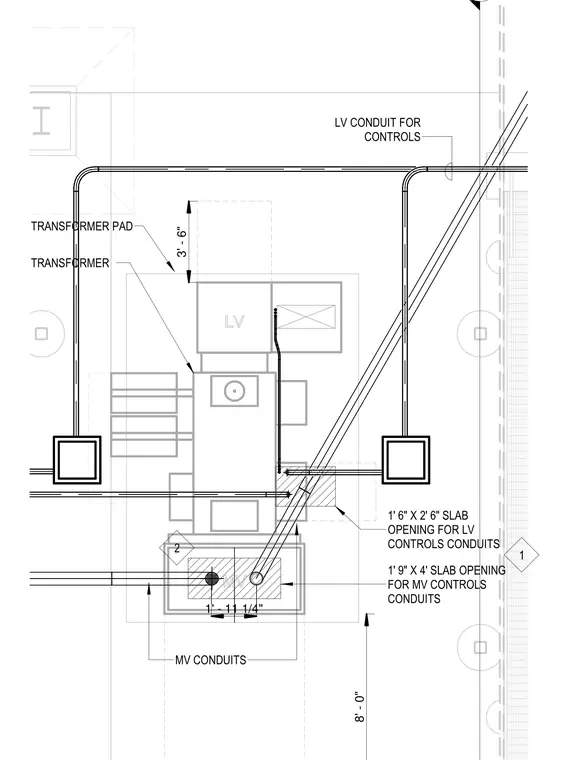

Medium-voltage and low-voltage control conduits route through specific slab openings to a concrete transformer pad. The low-voltage controls conduit passes through a one foot six inch by two foot six inch slab opening. The medium-voltage conduits route through a one foot nine inch by four foot slab opening spaced one foot eleven and one quarter inches apart. Dimensioned clearances locate the transformer pad relative to structural grid lines.
1' - 11 1/4" MV CONDUITS TRANSFORMER PAD TRANSFORMER 3' - 6" 8' - 0" LV CONDUIT FOR CONTROLS 1' 6" X 2' 6" SLAB OPENING FOR LV CONTROLS CONDUITS 1' 9" X 4' SLAB OPENING FOR MV CONTROLS CONDUITS 1 2
