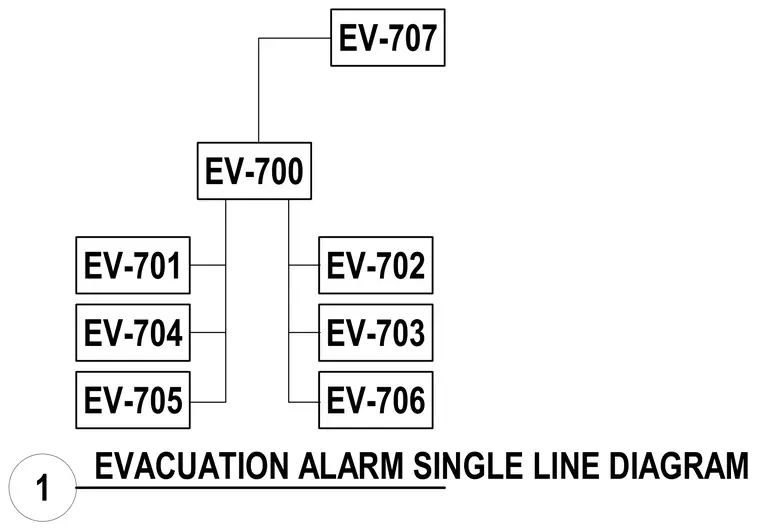

An evacuation alarm single line diagram outlines the system architecture connecting panel EV-700 to various peripheral devices including EV-701, EV-702, EV-703, EV-704, EV-705, EV-706, and EV-707. The riser layout establishes signal paths and device interconnections across the life safety network.
EV-700 EV-701 EV-704 EV-705 EV-702 EV-703 EV-706 EV-707 1 EVACUATION ALARM SINGLE LINE DIAGRAM
