480V Electrical Switchgear Distribution Diagram

About this detail

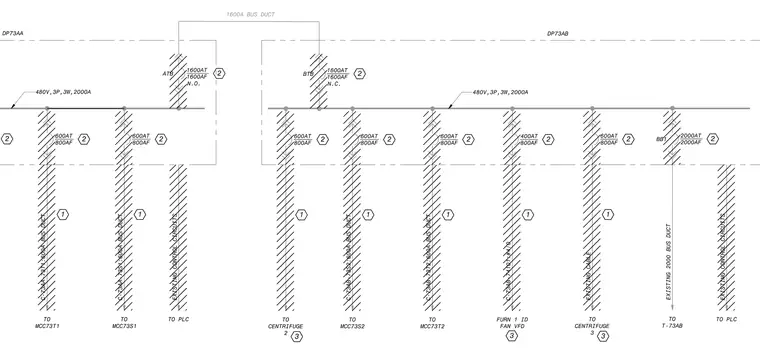

This electrical distribution diagram details a 480-volt, 3-phase, 3-wire, 2000-amp switchgear arrangement with distribution panels DP73AA and DP73AB connected via a 1600-amp bus duct. The system incorporates multiple feeder breakers with specified trip and frame ratings feeding equipment such as motor control centers, centrifugal units, variable frequency drives, and programmable logic controllers. Tie breakers with normal-open and normal-closed designations manage power routing across the bus sections.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
