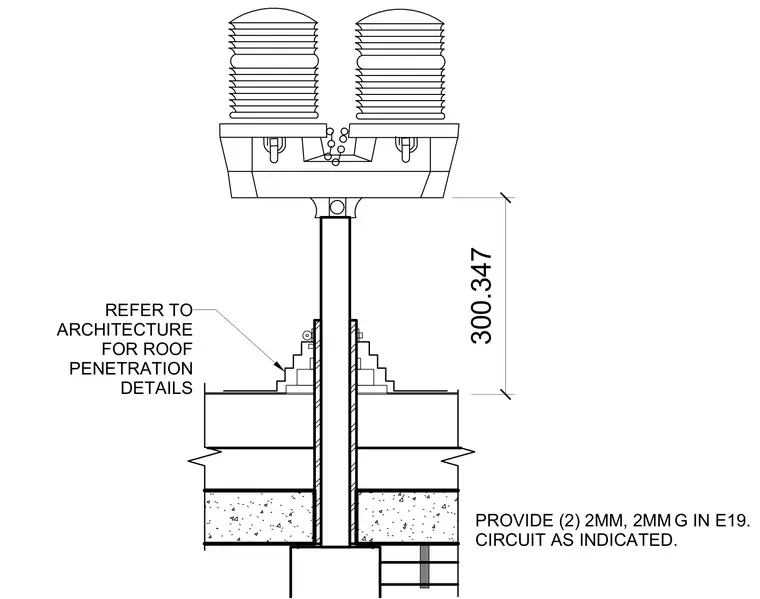

An obstruction light fixture is mounted on a vertical support mast extending above the roof assembly. Two conductors with ground are routed within the conduit circuit as indicated. Roof penetration details must be coordinated with architectural drawings.
REFER TO ARCHITECTURE FOR ROOF PENETRATION DETAILS PROVIDE (2) 2MM, 2MM G IN E19. CIRCUIT AS INDICATED. 300.347
