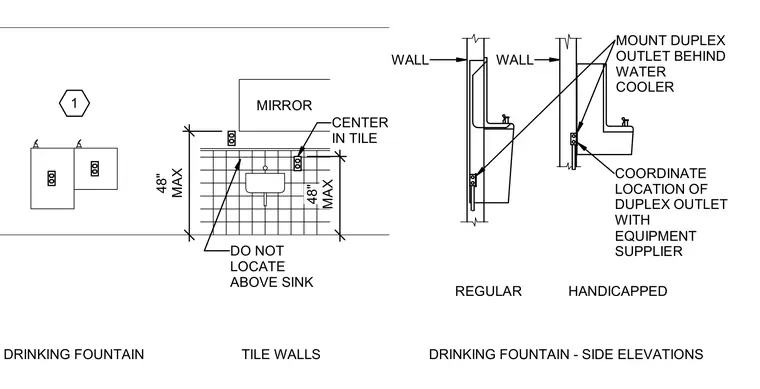

Side elevations and mounting details show regular and handicapped drinking fountains installed against walls with tile finishes. A duplex outlet is mounted directly behind the water cooler, coordinated in location with the equipment supplier. The mirror and associated outlet are centered within the tile layout with a maximum height restriction of forty-eight inches.
1 TILE WALLS DRINKING FOUNTAIN MIRROR CENTER IN TILE DO NOT LOCATE ABOVE SINK WALL WALL COORDINATE LOCATION OF DUPLEX OUTLET WITH EQUIPMENT SUPPLIER MOUNT DUPLEX OUTLET BEHIND WATER COOLER REGULAR HANDICAPPED DRINKING FOUNTAIN - SIDE ELEVATIONS 48" MAX 48" MAX
