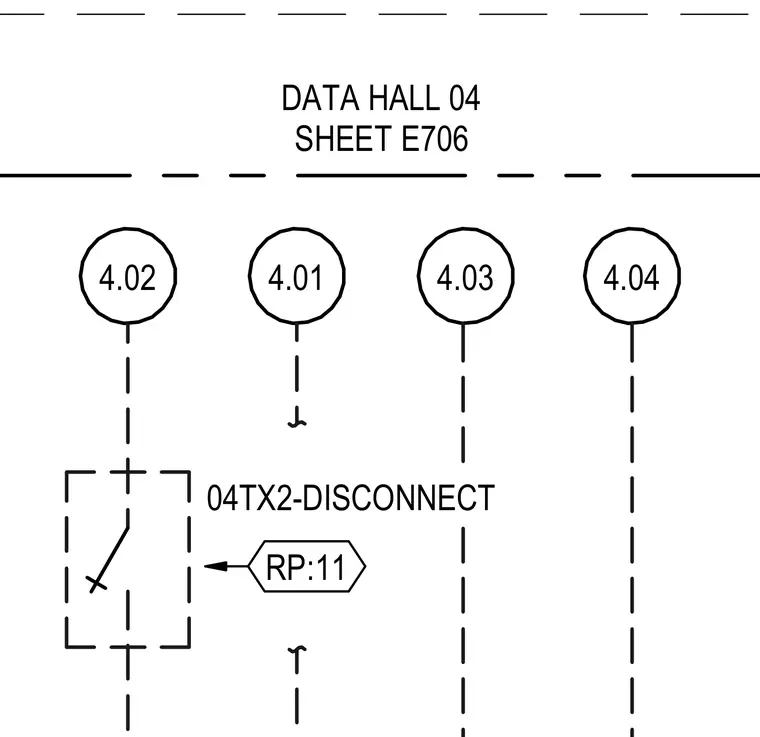

The electrical diagram outlines the disconnect switch for 04TX2 fed from panel RP:11. Dashed conduit runs connect the switch through circuit references 4.01, 4.02, 4.03, and 4.04.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
