Electrical · E-WM9FX

Motor Control Center Single Line Diagram Riser

About this detail

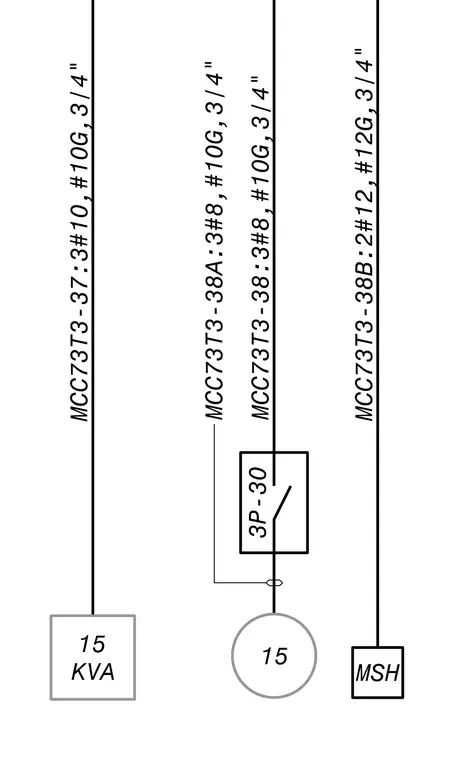

Electrical riser diagram illustrating circuit configurations originating from motor control center MCC73T3. The circuit includes a fifteen kilovolt-ampere transformer feed via three number ten conductors with one number ten ground in a three-quarter-inch conduit. Another feed branches through a three-pole thirty-ampere switch using three number eight conductors with one number ten ground in a three-quarter-inch conduit. A third circuit supplies a mechanical smoke hatch with two number twelve conductors and one number twelve ground in a three-quarter-inch conduit.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
