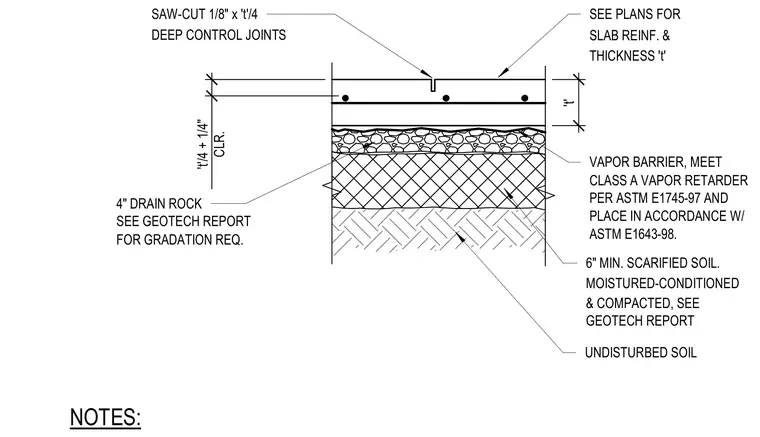

This concrete slab-on-grade detail features a thickness 't' concrete slab with a saw-cut control joint measuring one-eighth inch wide by a quarter of the slab depth deep. A Class A vapor retarder meeting ASTM E1745-97 is placed directly beneath the slab in accordance with ASTM E1643-98. Below the vapor retarder lies a four-inch layer of drain rock requiring gradation per the geotechnical report. The subbase consists of a minimum of six inches of moisture-conditioned and compacted scarified soil resting on undisturbed soil.
't'/4 + 1/4" CLR. 't' SEE PLANS FOR SAW-CUT 1/8" x 't'/4 DEEP CONTROL JOINTS VAPOR BARRIER, MEET 4" DRAIN ROCK SLAB REINF. & 6" MIN. SCARIFIED SOIL. UNDISTURBED SOIL MOISTURED-CONDITIONED & COMPACTED, SEE THICKNESS 't' NOTES: SEE GEOTECH REPORT FOR GRADATION REQ. CLASS A VAPOR RETARDER PER ASTM E1745-97 AND PLACE IN ACCORDANCE W/ ASTM E1643-98. GEOTECH REPORT
