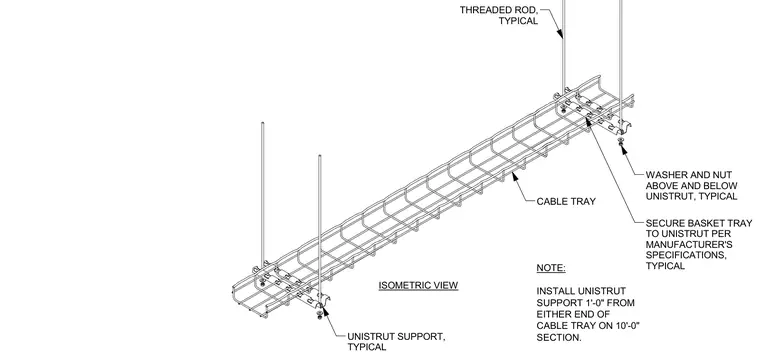

A ten-foot wire basket cable tray is suspended overhead by threaded rods attached to Unistrut support channels located one foot in from each end of the section. The basket tray is secured to the Unistrut supports per the manufacturer's specifications. Threaded rods are anchored with washers and nuts positioned both above and below the Unistrut channel at each support location.
ISOMETRIC VIEW NOTE: INSTALL UNISTRUT SUPPORT 1'-0" FROM EITHER END OF CABLE TRAY ON 10'-0" SECTION. UNISTRUT SUPPORT, TYPICAL CABLE TRAY THREADED ROD, TYPICAL WASHER AND NUT ABOVE AND BELOW UNISTRUT, TYPICAL SECURE BASKET TRAY TO UNISTRUT PER MANUFACTURER'S SPECIFICATIONS, TYPICAL
