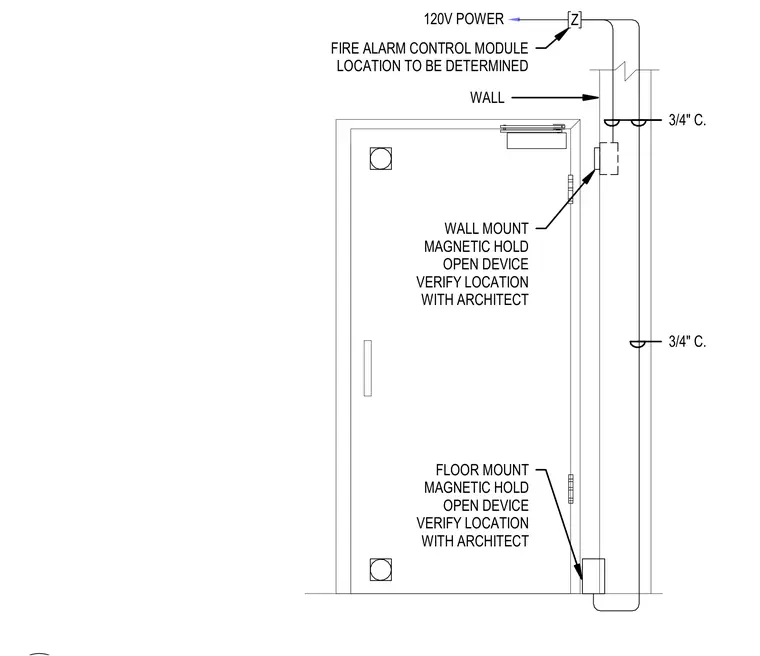

A 120-volt power supply routes through three-quarter-inch conduit to a fire alarm control module located within the wall. A wall-mounted magnetic hold-open device and a floor-mounted magnetic hold-open device connect to the system, with exact positioning verified in the field with the architect.
120V POWER FIRE ALARM CONTROL MODULE LOCATION TO BE DETERMINED Z WALL 3/4" C. 3/4" C. WALL MOUNT MAGNETIC HOLD OPEN DEVICE VERIFY LOCATION WITH ARCHITECT FLOOR MOUNT MAGNETIC HOLD OPEN DEVICE VERIFY LOCATION WITH ARCHITECT
