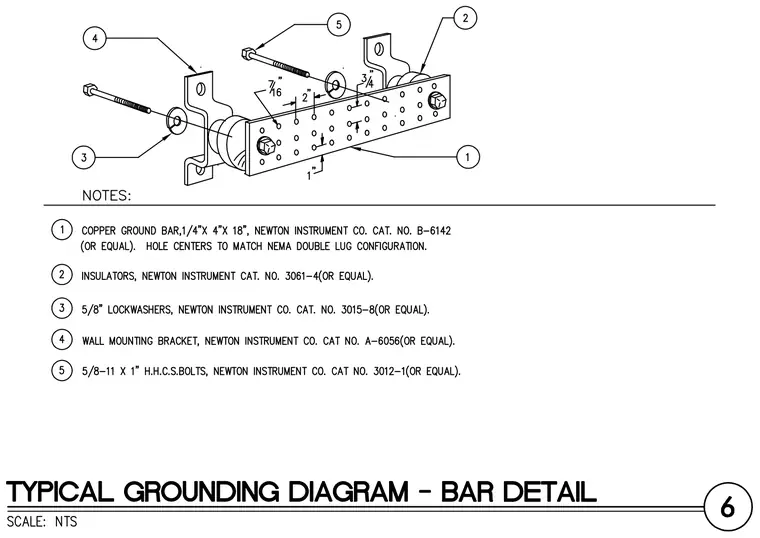

A 1/4-inch by 4-inch by 18-inch copper ground bar is mounted to a wall using two wall-mounting brackets and insulators. The assembly is secured with 5/8-11 by 1-inch heavy hex head cap screws and 5/8-inch lockwashers. Hole centers on the bar match a NEMA double lug configuration, featuring 7/16-inch holes spaced per the detailed layout.
