Electrical · E-WD6WQ

Remote Mounted Starter Chiller Detail

Elements

About this detail

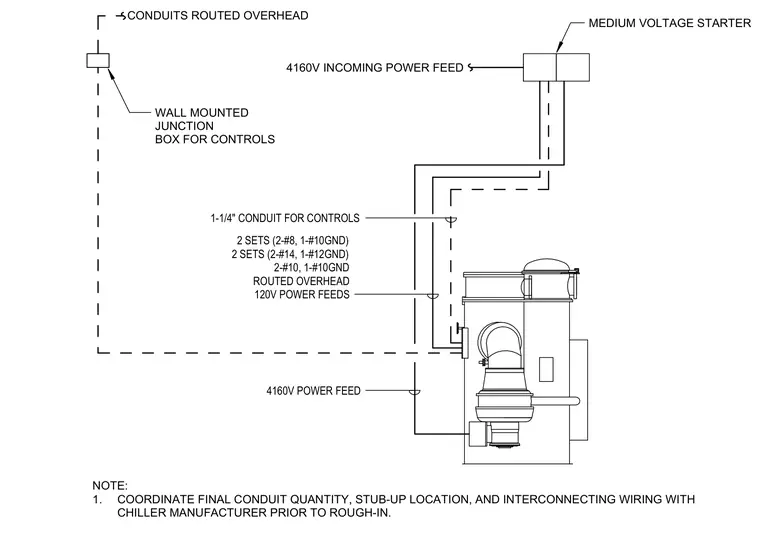

A medium voltage starter supplies a 4160V incoming power feed to the chiller unit via overhead conduits. A wall-mounted junction box routes 120V power feeds, control wiring through a 1-1/4 inch conduit, and two sets of specific conductor configurations containing number 8, number 14, and number 10 ground wires. Final conduit quantities, stub-up locations, and interconnecting wiring must be coordinated with the chiller manufacturer prior to rough-in.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
