A wireless area lighting controller connects to a twenty amp load and a low voltage photo sensor via low voltage wiring. The line voltage supply to the fixture handles a maximum of three hundred watts at one hundred twenty to three hundred forty-seven volts. The system supports up to thirty ballasts or drivers connected in parallel for zero to ten volt dimming applications. Additional controllers must be provided for each daylight zone shown on the lighting plans, with daylight harvesting photosensors installed per manufacturer recommendations. Each daylight photosensor area cannot exceed twenty-five hundred square feet.

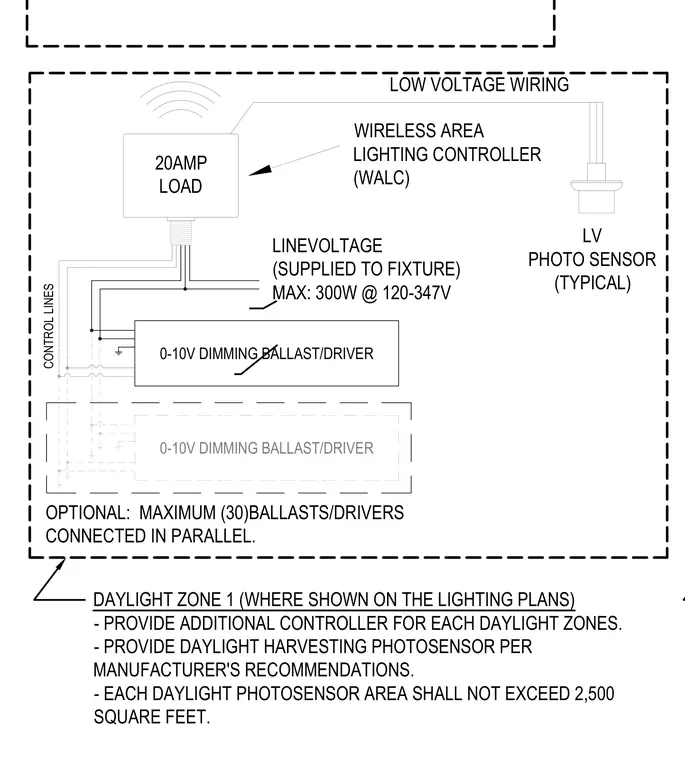

LV PHOTO SENSOR (TYPICAL) 20AMP LOAD WIRELESS AREA LIGHTING CONTROLLER (WALC) LINEVOLTAGE (SUPPLIED TO FIXTURE) MAX: 300W @ 120-347V CONTROL LINES OPTIONAL: MAXIMUM (30)BALLASTS/DRIVERS CONNECTED IN PARALLEL. 0-10V DIMMING BALLAST/DRIVER 0-10V DIMMING BALLAST/DRIVER LOW VOLTAGE WIRING DAYLIGHT ZONE 1 (WHERE SHOWN ON THE LIGHTING PLANS) - PROVIDE ADDITIONAL CONTROLLER FOR EACH DAYLIGHT ZONES. - PROVIDE DAYLIGHT HARVESTING PHOTOSENSOR PER MANUFACTURER'S RECOMMENDATIONS. - EACH DAYLIGHT PHOTOSENSOR AREA SHALL NOT EXCEED 2,500 SQUARE FEET.
