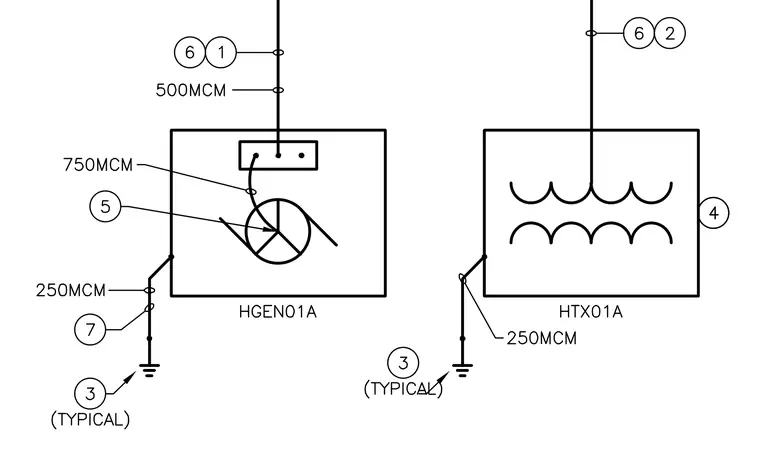

An electrical schematic diagram illustrating grounding and conductor sizing for generator HGEN01A and transformer HTX01A. The generator features a 500MCM feeder conductor entering the top, internal connections utilizing 750MCM wire, and a 250MCM grounding conductor running to an earth ground. The transformer HTX01A includes an incoming conductor and a 250MCM grounding conductor routed to a typical earth ground.
