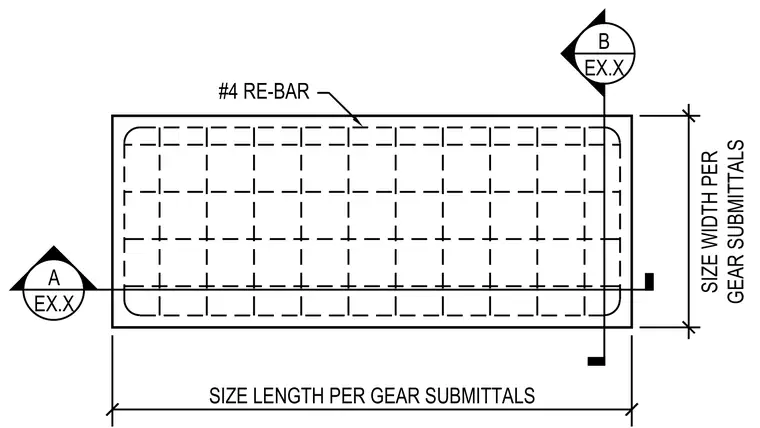

This electrical equipment pad consists of concrete reinforced with number four rebar. The overall length and width are sized according to the approved electrical gear submittals.
#4 RE-BAR SIZE LENGTH PER GEAR SUBMITTALS B EX.X A EX.X SIZE WIDTH PER GEAR SUBMITTALS
