A 2x4 recessed lighting fixture is supported by T-bar main runners secured with four total number 6 TEKS screws in compliance with ICC ESR-1976. Each corner of the fixture is hung from the overhead structure using number 12 American Wire Gauge steel wire with a minimum of three turns in 1-1/2 inches, coordinated with architectural drawings for structural attachment. A lighting fixture outlet junction box is mounted directly to the structure above the fixture for independent seismic installation and is left unshared with other fixtures. Electrical power is supplied through an EMT conduit to the junction box and fed to the fixture via a 6-foot centered flexible conduit with a grounding conductor, allowing the fixture to swing freely during seismic activity without pulling out from the T-bar track.

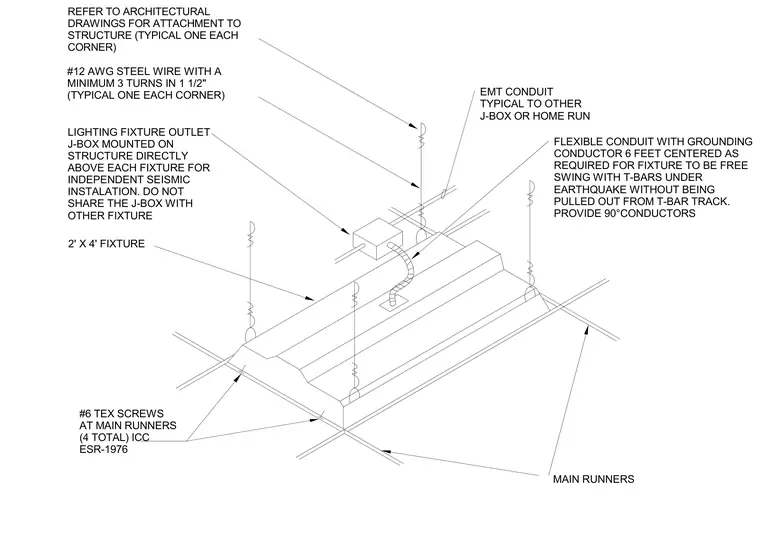

REFER TO ARCHITECTURAL DRAWINGS FOR ATTACHMENT TO STRUCTURE (TYPICAL ONE EACH CORNER) #12 AWG STEEL WIRE WITH A MINIMUM 3 TURNS IN 1 1/2" (TYPICAL ONE EACH CORNER) LIGHTING FIXTURE OUTLET J-BOX MOUNTED ON STRUCTURE DIRECTLY ABOVE EACH FIXTURE FOR INDEPENDENT SEISMIC INSTALATION. DO NOT SHARE THE J-BOX WITH OTHER FIXTURE FLEXIBLE CONDUIT WITH GROUNDING CONDUCTOR 6 FEET CENTERED AS REQUIRED FOR FIXTURE TO BE FREE SWING WITH T-BARS UNDER EARTHQUAKE WITHOUT BEING PULLED OUT FROM T-BAR TRACK. PROVIDE 90°CONDUCTORS EMT CONDUIT TYPICAL TO OTHER J-BOX OR HOME RUN MAIN RUNNERS 2' X 4' FIXTURE #6 TEX SCREWS AT MAIN RUNNERS (4 TOTAL) ICC ESR-1976
