Electrical · E-W657W

Lighting Contactor Cabinet Technical Specifications and Dimensions

Materials

Elements

About this detail

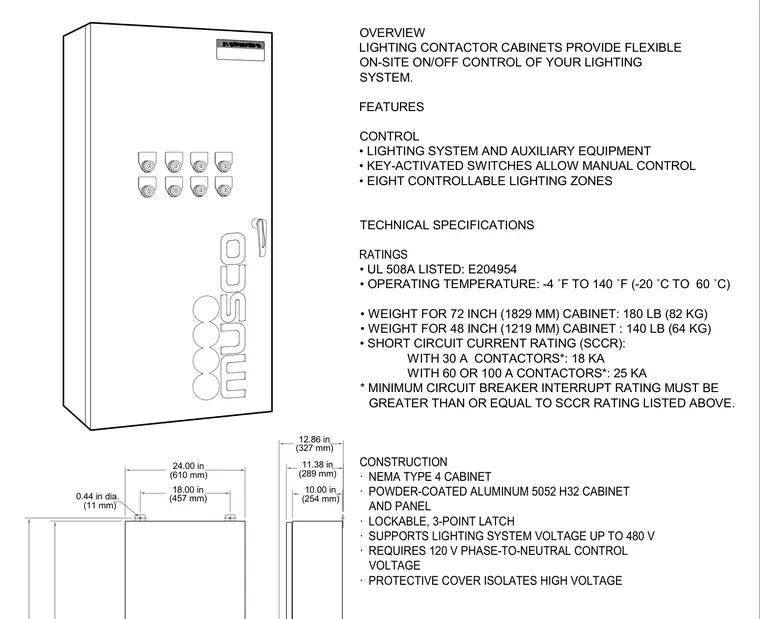

Technical specifications, dimensions, and overview of a lighting contactor cabinet designed for flexible on-site control of exterior lighting systems and auxiliary equipment. The assembly features a NEMA Type 4 lockable enclosure fabricated from powder-coated aluminum 5052 H32, equipped with a three-point latch and a protective cover that isolates high voltage. Key-activated switches provide manual control for up to eight lighting zones, supporting system voltages up to 480 volts with a 120 volt phase-to-neutral control voltage requirement. Detailed dimensions show a cabinet width of 24 inches with 18-inch mounting centers, and overall dimensions including mounting hole diameters of 0.44 inches. Additional ratings include UL 508A listing, an operating temperature range from -4 degrees Fahrenheit to 140 degrees Fahrenheit, and short-circuit current ratings varying from 18 kiloamps to 25 kiloamps depending on contactor amperage.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
