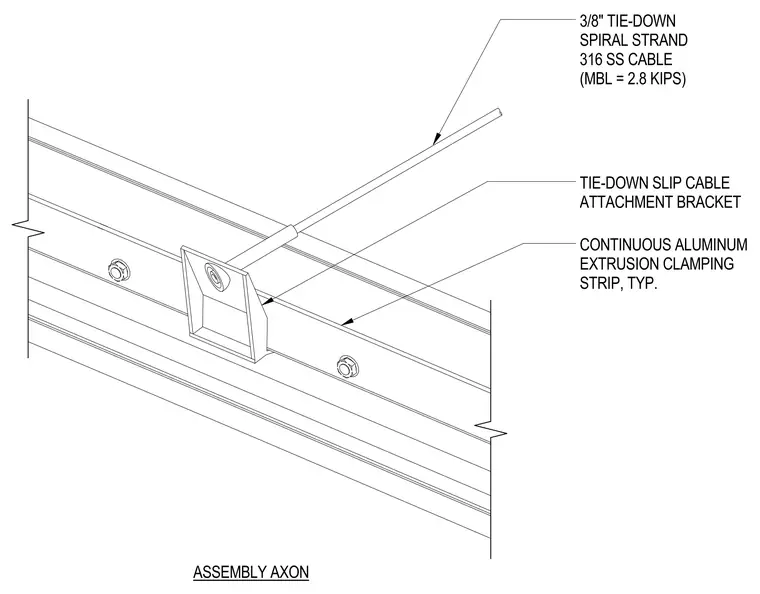

A three-eighths-inch diameter three hundred sixteen stainless steel tie-down spiral strand cable with a minimum breaking load of two point eight kips connects to a tie-down slip cable attachment bracket. The bracket is anchored to a continuous aluminum extrusion clamping strip typically running along the assembly.
ASSEMBLY AXON TIE-DOWN SLIP CABLE ATTACHMENT BRACKET CONTINUOUS ALUMINUM EXTRUSION CLAMPING STRIP, TYP. 3/8" TIE-DOWN SPIRAL STRAND 316 SS CABLE (MBL = 2.8 KIPS)
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
