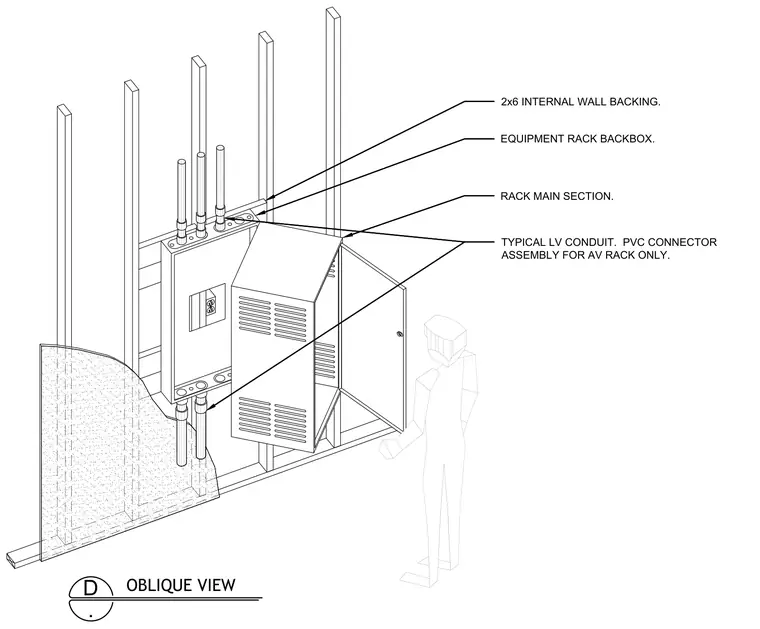

An equipment rack backbox is recessed within wood framing backed by two-by-six internal wall backing. A main equipment rack mounts to the backbox with a hinged door and louvered ventilation panels. Low-voltage conduits connect into the top and bottom of the assembly utilizing PVC connector assemblies restricted to audio-visual rack installations only.
2x6 INTERNAL WALL BACKING. EQUIPMENT RACK BACKBOX. RACK MAIN SECTION. D OBLIQUE VIEW . TYPICAL LV CONDUIT. PVC CONNECTOR ASSEMBLY FOR AV RACK ONLY. 2x6 INTERNAL WALL BACKING. EQUIPMENT RACK BACKBOX. RACK MAIN SECTION. TYPICAL LV CONDUIT. PVC CONNECTOR ASSEMBLY FOR AV RACK ONLY.
