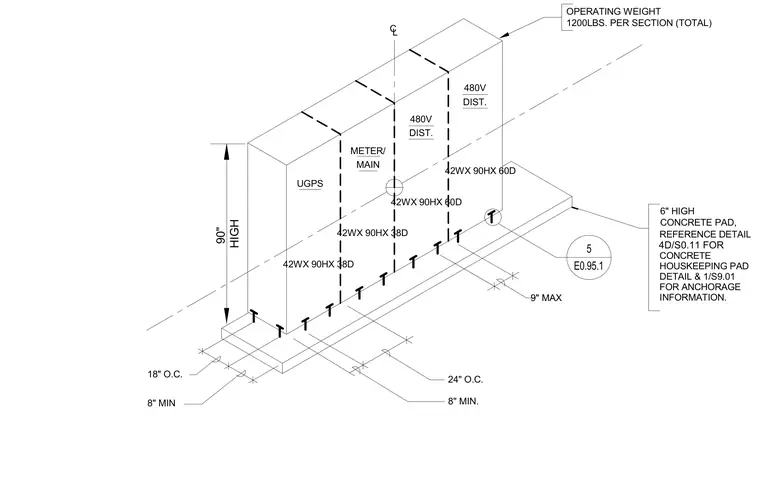

An electrical switchboard assembly with multiple sections rests on a six-inch high concrete housekeeping pad. The total operating weight is twelve hundred pounds, distributed across sections measuring forty-two inches wide, ninety inches high, and varying depths of thirty-eight and sixty inches. Anchor bolts secure the switchboard housing to the concrete pad at specified spacings of eighteen and twenty-four inches on center with nine-inch maximum edges. Reference details provide specific anchorage information and concrete pad reinforcement requirements.
1200LBS. PER SECTION (TOTAL) 8" MIN. 8" MIN 18" O.C. 24" O.C. DIST. UGPS MAIN METER/ CONCRETE PAD, 9" MAX 6" HIGH CL OPERATING WEIGHT 480V 42WX 90HX 60D DIST. 480V 42WX 90HX 60D 42WX 90HX 38D 42WX 90HX 38D REFERENCE DETAIL 7/S1.01 FOR CONCRETE HOUSKEEPING PAD DETAIL & 1/S9.01 FOR ANCHORAGE INFORMATION. 90" HIGH 5 E0.95.1 4D/S0.11 FOR
